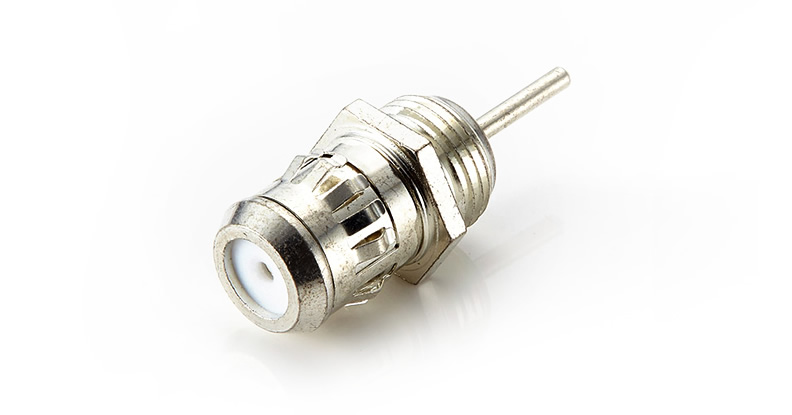

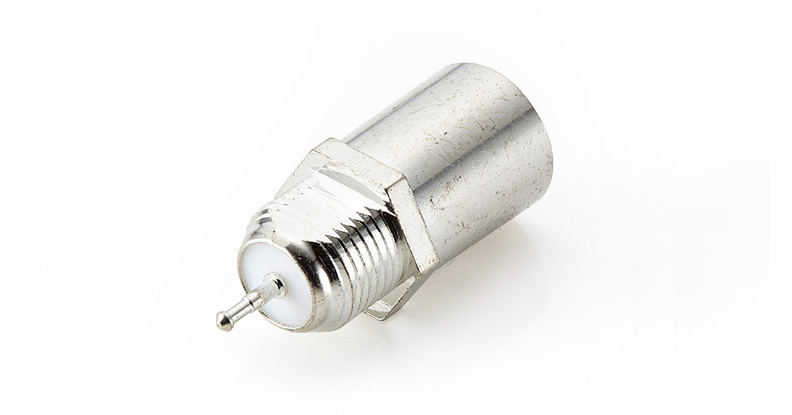

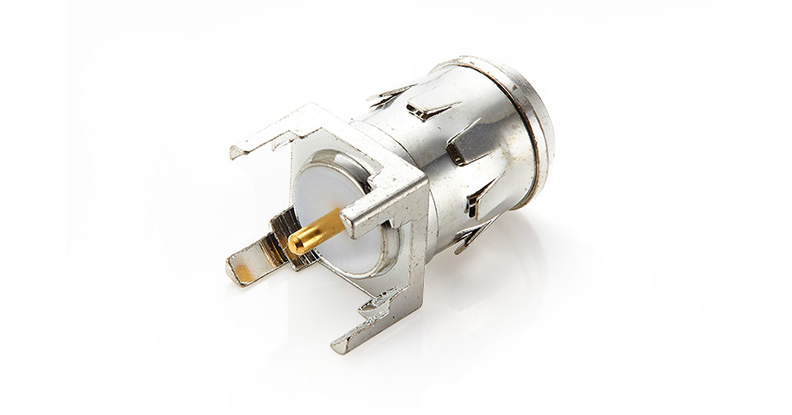

G Connector

EZconn offers a seires of high performance G type connector/adaptor for Set Top Box, Cable Modem, Amplifier and Head End Equipment.

產品諮詢

介紹

規格表

關聯產品

關聯應用

Introduction

介紹

EZconn offers a seires of high performance G type connector/adaptor for Set Top Box, Cable Modem, Amplifier and Head End Equipment.

Specifications

規格表

111

DRAG TO VIEW

Specifications

Impedance

Frequency

Thread Type

Temperature Range

75 Ω

DC 0-3GHZ

3/8-32UNEF

(-40°C to +60°C)

DRAG TO VIEW

Materials

Body, Metal Parts

Center pin/ inner contact

Insulator

Brass or Zinc Alloy

Male: Brass, Phosphor Bronze, Beryllium Copper
Female: Brass, Phosphor Bronze, Beryllium Copper

PTFE, PA9T, Delrin, PP or PBT
